Fuel / VE tuning
- Interactive VE table editor with optional 3D surface display

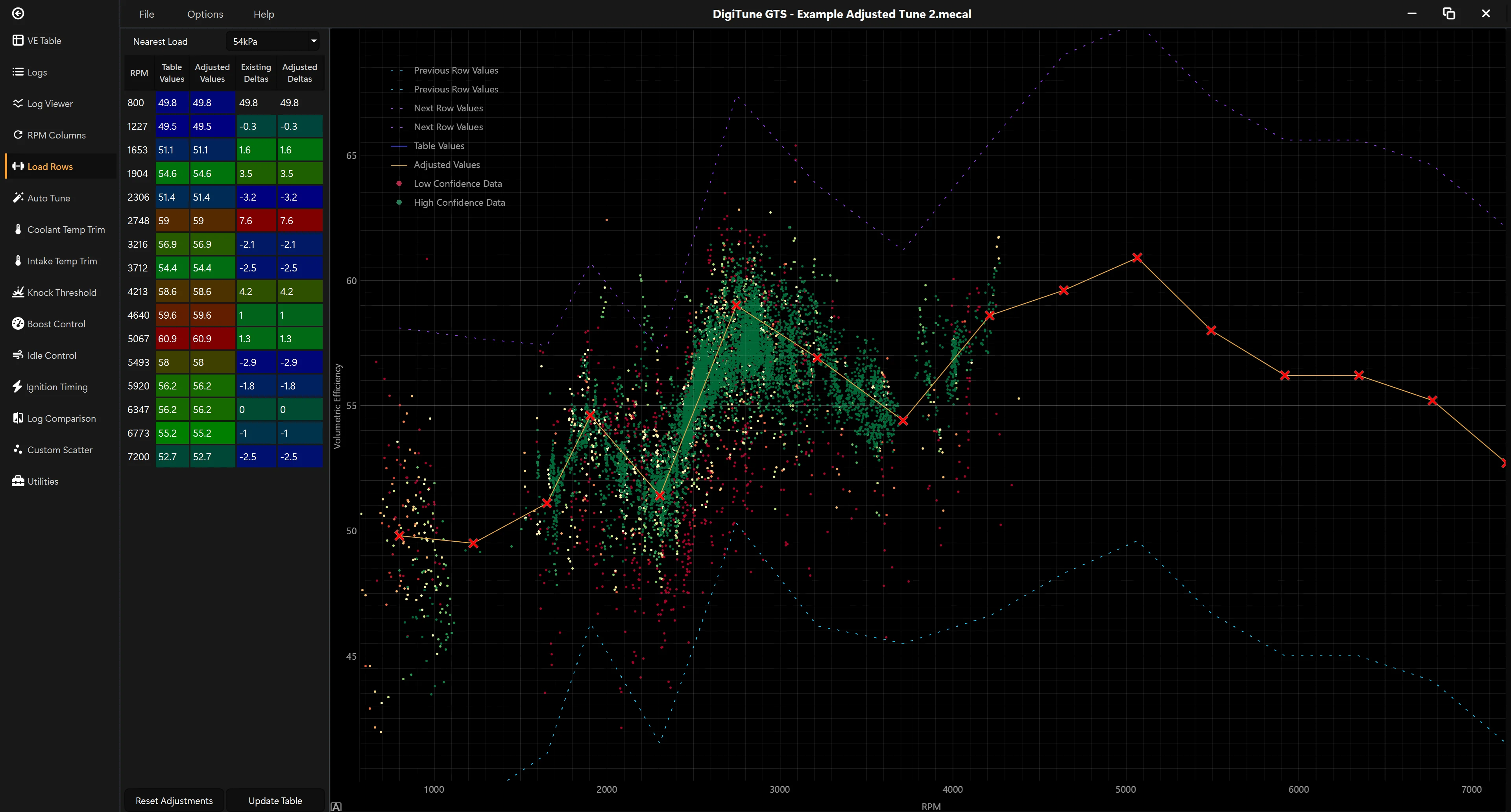

- Log-driven scatter plots for every row and column
- Drag points, enter values directly, or nudge with hotkeys
- RPM and load compensation so every log point lands on the right cell

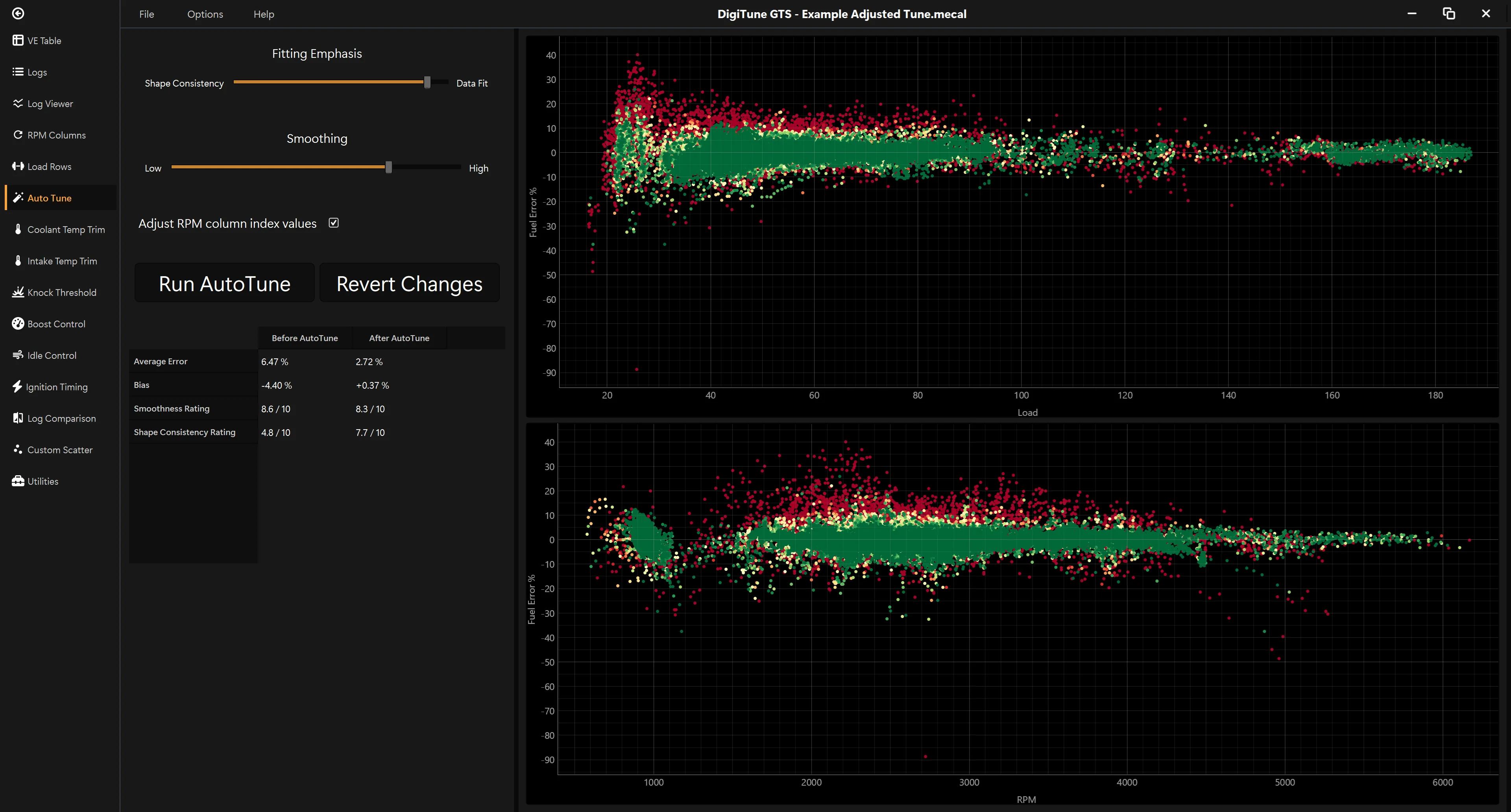

- AutoTune (MAP-based) with smoothing and row/column nudging
Ignition timing
- Ignition table editor with knock retard overlay

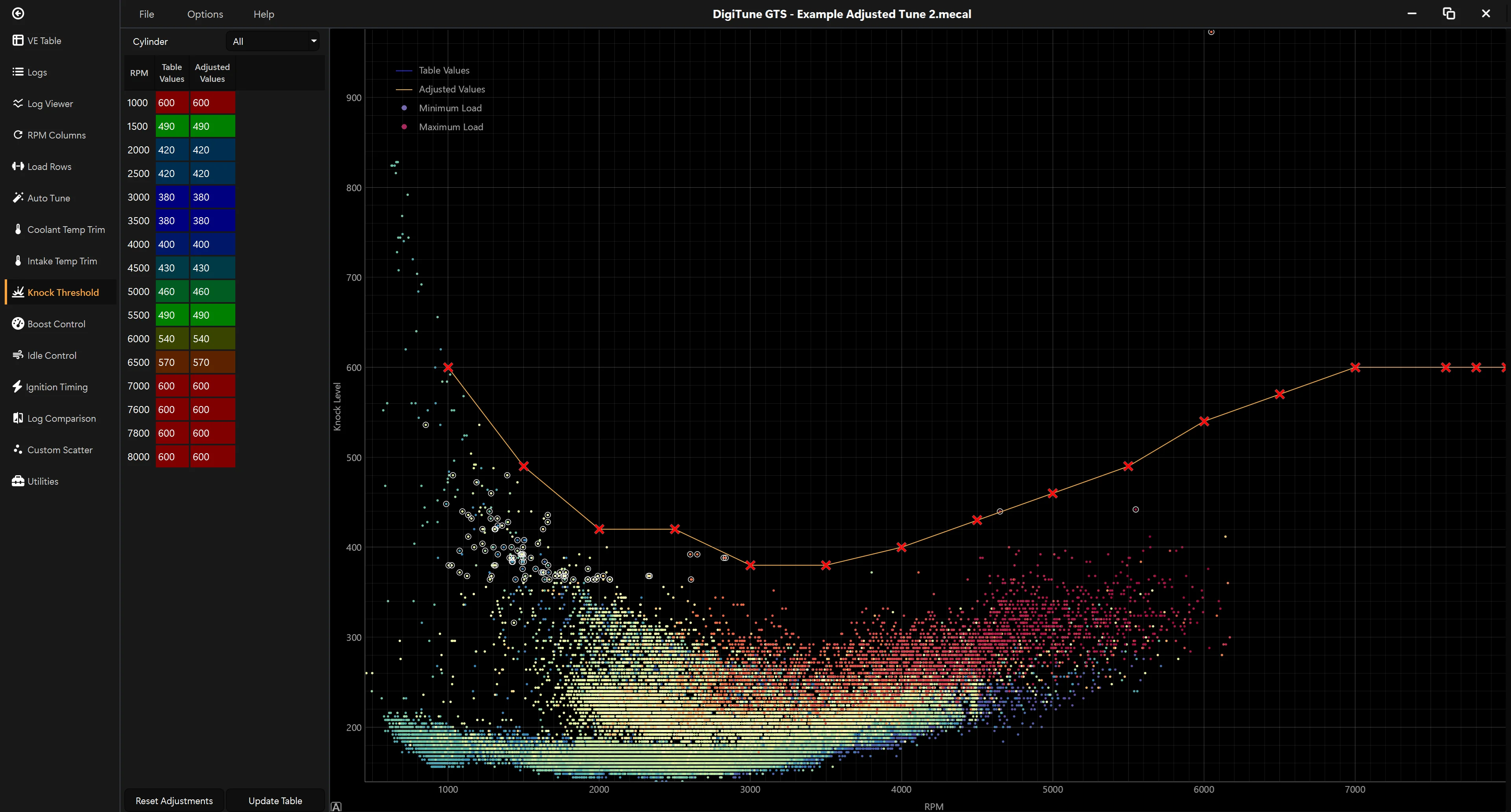

- Knock sensor signal plot vs RPM
- ECU thresholds (Background Noise / Acceptable Level) overlaid for tuning
Boost & idle
- Open-loop and closed-loop / target boost tables
- Boost duty and idle duty scatter plot tabs
- Idle data model with dedicated tuning views

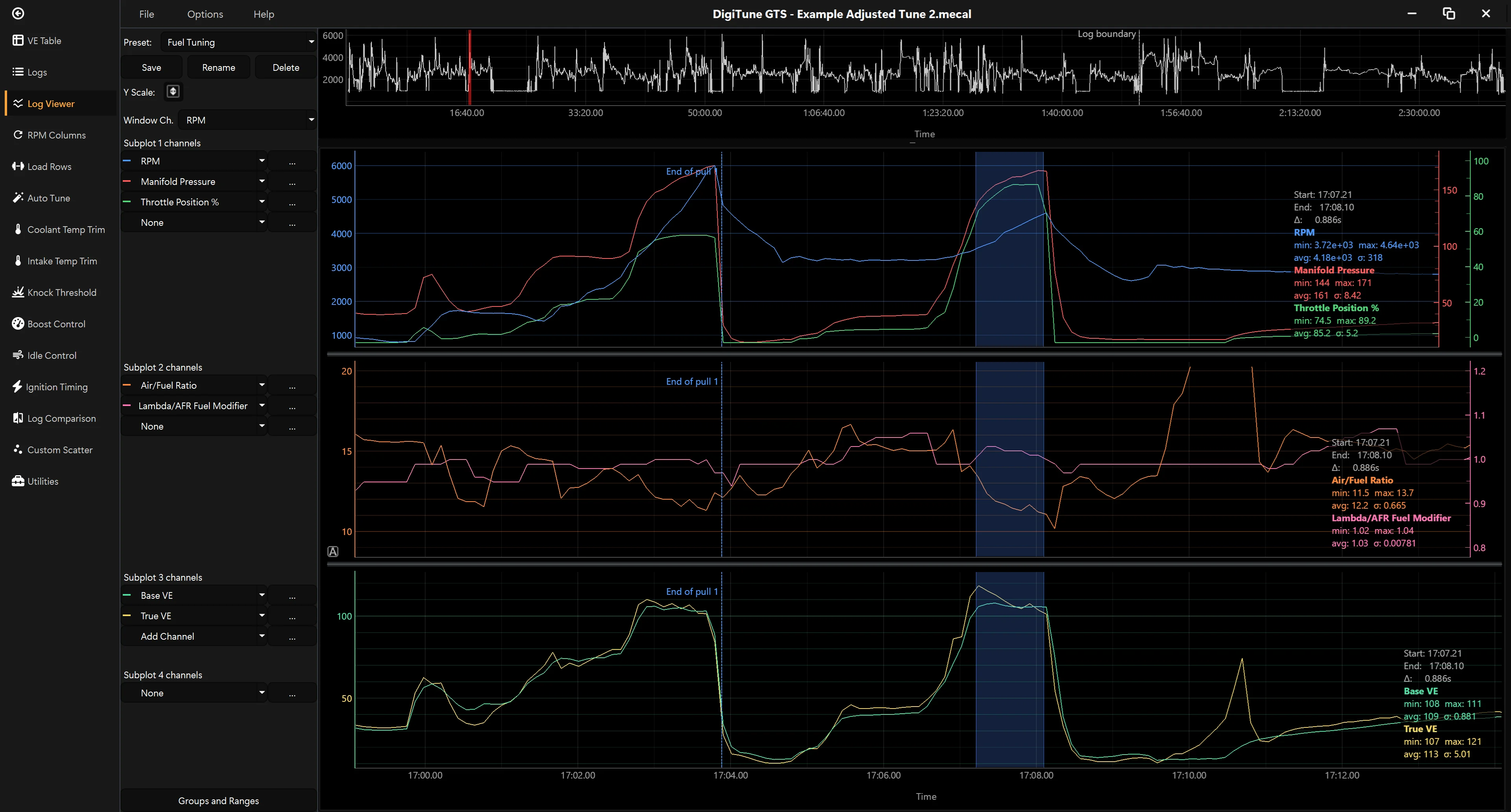

Log viewer
- Time-series viewer with zoom, pan and channel selection
- Multi-log merge into a single timeline
- Per-channel Y axes
- Default and saved channel presets
- Ctrl+Click from any scatter plot to jump to the matching log moment
Compensation tuning
- IAT (intake air temperature) trim analysis across multiple logs
- CLT (coolant temperature) trim analysis
- Comparison view to A/B logs
